E2-350B

Technical features:

Fully automatic working cycle with the exception of loading and unloading of the material.

Working width: 1700mm. ( 67″ ).

Max. O. D. of the log: 350mm. (13.8″) on Ø76mm (3”) mandrels and 250mm. (9.8″) on 38mm (1½”) mandrels.

Max Ø of the blade : 450mm. (17.7″).

Max weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs); with supported mandrel , 200 kg (441lbs).

No. 2 Interchangeable, rotating mandrels from Ø38mm (1½”) to Ø76mm (3″), to cut two logs simultaneously.

Indexing tolerance: +/-0.1mm. (0,003″).

Cutting width: from 2mm. with decimal increasing (from 0,008” with thousandths increasing).

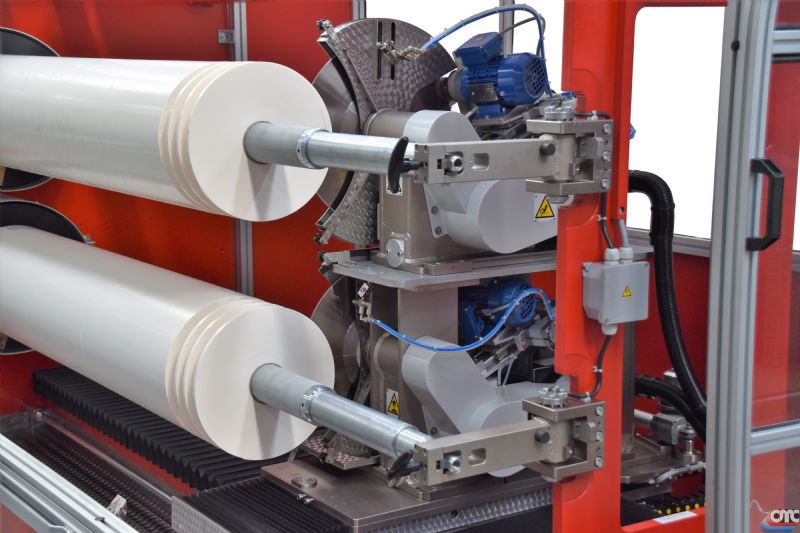

Cutting system: two over-imposed rotating, circular blades with independent adjustment to slit simultaneously on two mandrels (one vertically above the other one).

No. 2 Pneumatic jaws chucks with plateau to grip both the core and the log from outside up to a max. Ø of 350mm. (13,8″).

Driven blade unit.

Automatic blade pivoting angle.

Machine controlled by a “PLC SIEMENS” and interface operator “TP700” with touch screen technology.

This model can be customized to meet customer’s needs thanks to a wide range of options available.
