E450

Technical features:
Fully automatic working cycle with the exception of loading and unloading of the material.

Working width: 1700mm. ( 67″ ).

Max. O. D. of the log: 430mm (16.9″) on Ø 76mm (3”) mandrel with Ø 500mm. (19.7″) blade.

Max. weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs); with supported mandrel, 200 kg (441 lbs).

Interchangeable mandrels from Ø 25mm (1”) to Ø 76mm (3”).

Indexing tolerance: +/- 0,1mm. (0,003″).

Cutting width: from 2mm. with decimal increasing (from 0.08” with thousandths increasing).

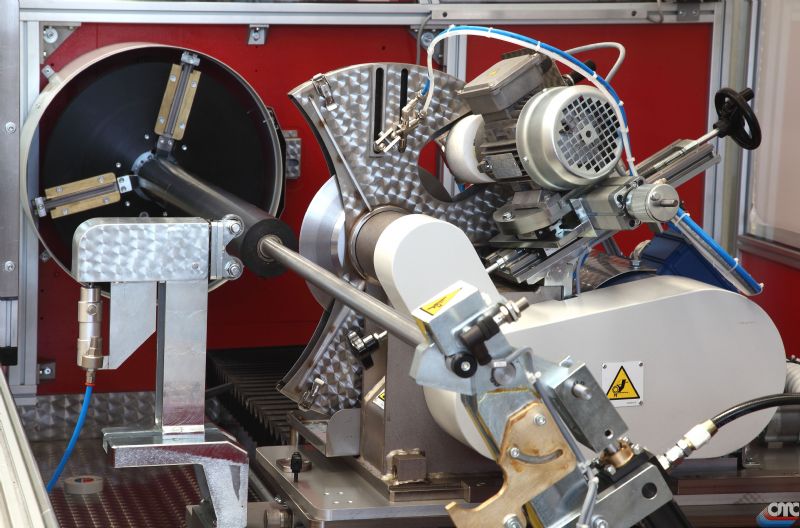

Cutting system: single rotating blade on one mandrel.

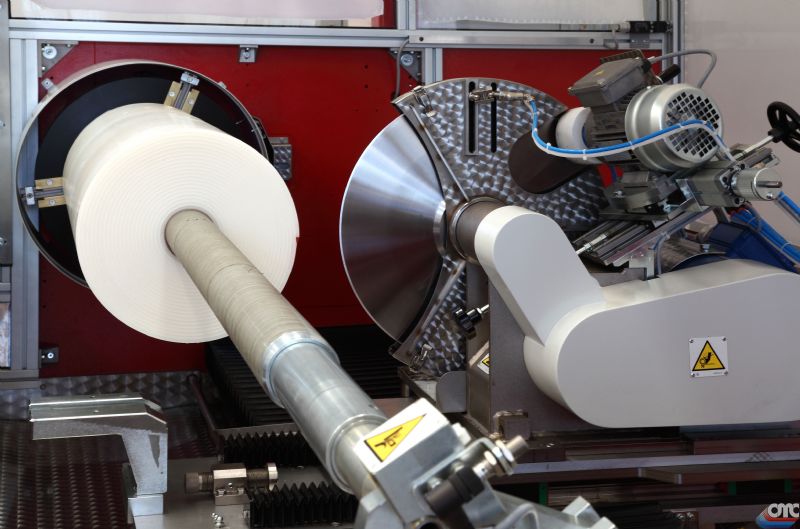

Pneumatic jaws chuck with plateau to grip both the core and the log from outside up to a max. Ø of 430mm. (16,9″).

Driven blade unit.

Automatic blade pivoting angle.

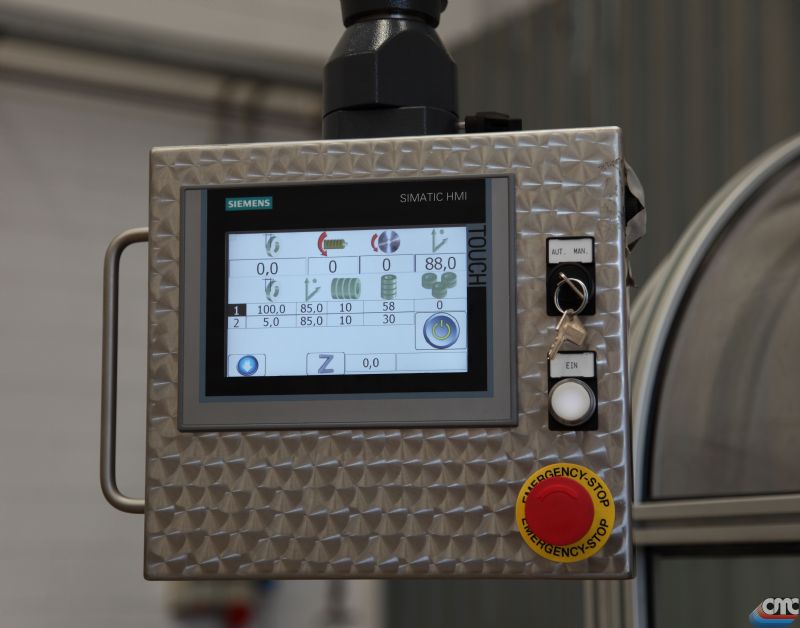

Machine controlled by a PLC “SIEMENS” and interface operator “TP700” with touch screen technology.

This model can be customized to meet customer’s needs thanks to a wide range of options available.
