E650+S

Technical features:

Fully automatic working cycle with the exception of loading and unloading of the material.

Working width: 1700mm. ( 67″ ).

Max. O. D. of the log: 650mm (25,6″) on Ø 76mm. (3”) mandrel with Ø 730mm. (28,7″) blade.

Max weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs); with supported mandrel , 200 kg (441 lbs).

Interchangeable mandrels from Ø51mm (2”) to Ø76mm (3”).

Indexing tolerance: +/- 0,1mm. (0,003″).

Cutting width: from 2mm. with decimal increasing (from 0.08” with thousandths increasing).

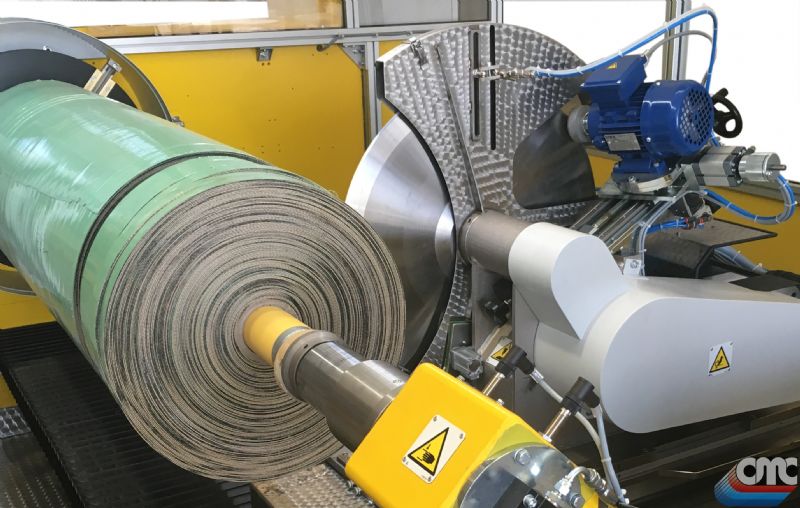

Cutting system: single rotating blade on one mandrel.

Mandrel tailstock support automatically operated.

Loading / Unloading trolley hydraulically operated.

Machine controlled by a PLC “SIEMENS”and interface operator “TP700” with touch screen technology for all the working functions and display for the cutting widths pre-selection, production counter, rotation speed of the log and of the blade.

Total safety protection guard with sliding doors, complying with the “EC” regulations in force.

Internet remote-service assistance with link to CMC CEVENINI for on-line software up-date and fault finding.

This model can be customized to meet customer’s needs thanks to a wide range of others options available.
