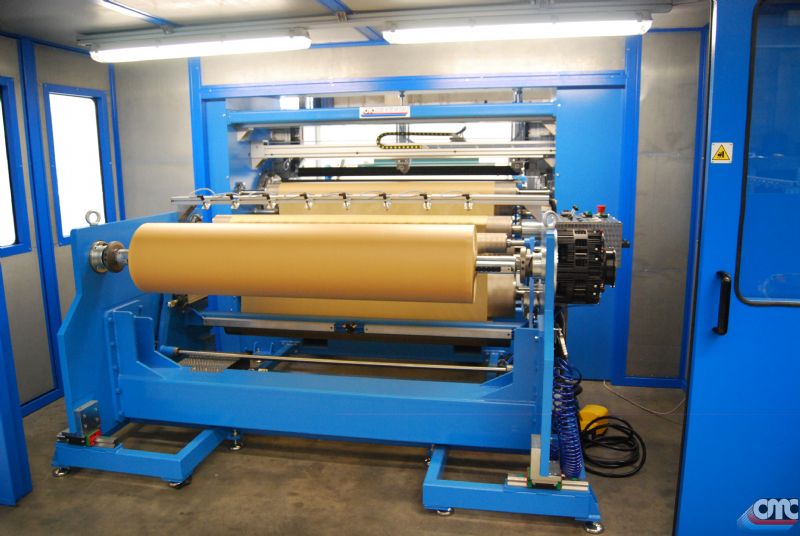

RA 14

Technical features:

Fully automatic working cycle.

Working width: max. 1700mm. (67”)

Log roll max. Ø : 220mm. (8.7”)

Winding shafts max. Ø : from 38mm (1½”) to 76mm (3”).

Automatic turret unit with two mandrels, one for rewinding and the other one for loading/unloading.

Machine fitted with two rewinding mandrels.

Fold-stretcher “banana roll”, adjustable.

Automatic film cut-off.

Electronic microprocessor for the presetting and the control of all the working functions.

Data entered on an operative panel and viewed on a display.

Automatic check control of the working sequences of the machine with error description.

Possibility to interface the Rewinding Machine RA to a PC in order to store numberless working pages.

Main and rewinding motors are both DC and electronically controlled.

Fully enclosed Soundproofing Cabinet for noise reduction.

Tabbing device.
