USED MACHINE MOD. E600 NM5 SERIAL NUMBER 1078/05/20R

TECNICAL FEATURES:

TECNICAL FEATURES:
DIRECT SALE: AVAILABLE FROM ACTUAL "ITALIAN OWNER" TO BUYER

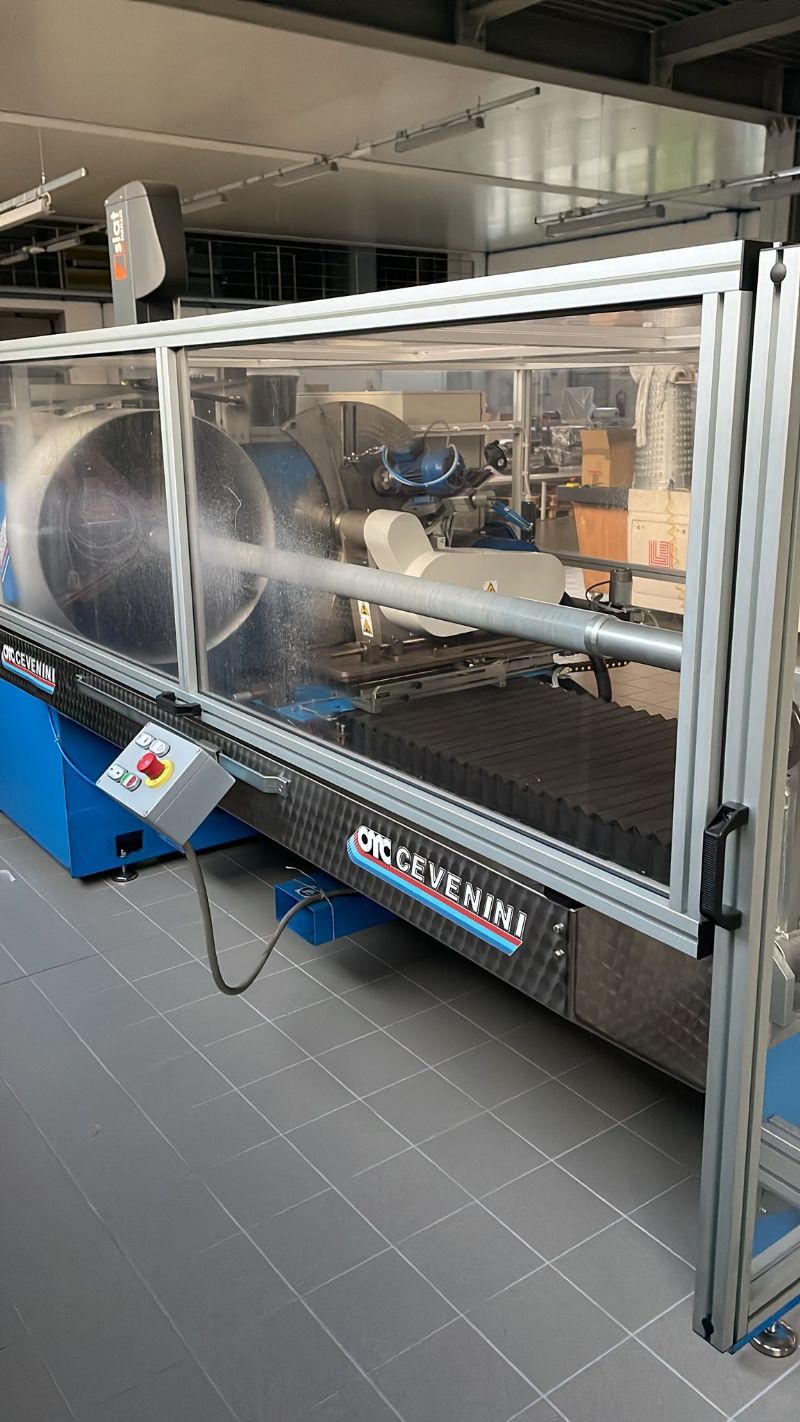

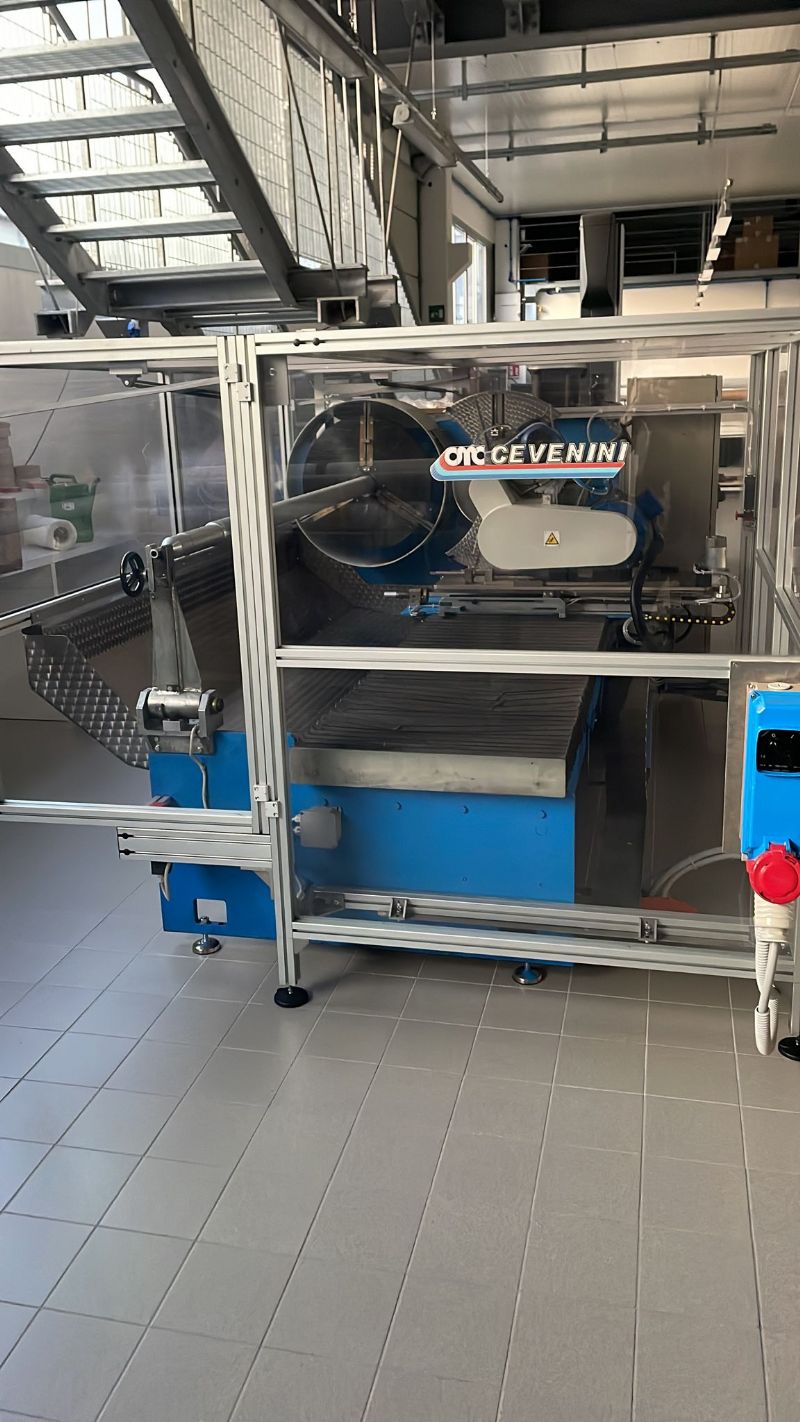

AUTOMATIC LOG SLITTER MOD E600 NM5
SERIAL N°: 1078/05/20R
YEAR OF MANUFACTURE: 2005 REFURBISHED 2020


TECHNICAL FEATURES:Fully automatic working cycle with the exception of loading and unloading of the material.
Working width: 1700mm. – Max Log O.D.: 640mm. on Ø 3” mandrel, with Ø 730mm.blade.
Fully automatic expansion (near the chuck) 3” rotating Mandrel.
Indexing tolerance: +/- 0,1 mm.Power Supply: 400V – 50 Hz. 3Ph.+ ground.
Cutting width: from 2mm. with decimal increasing.

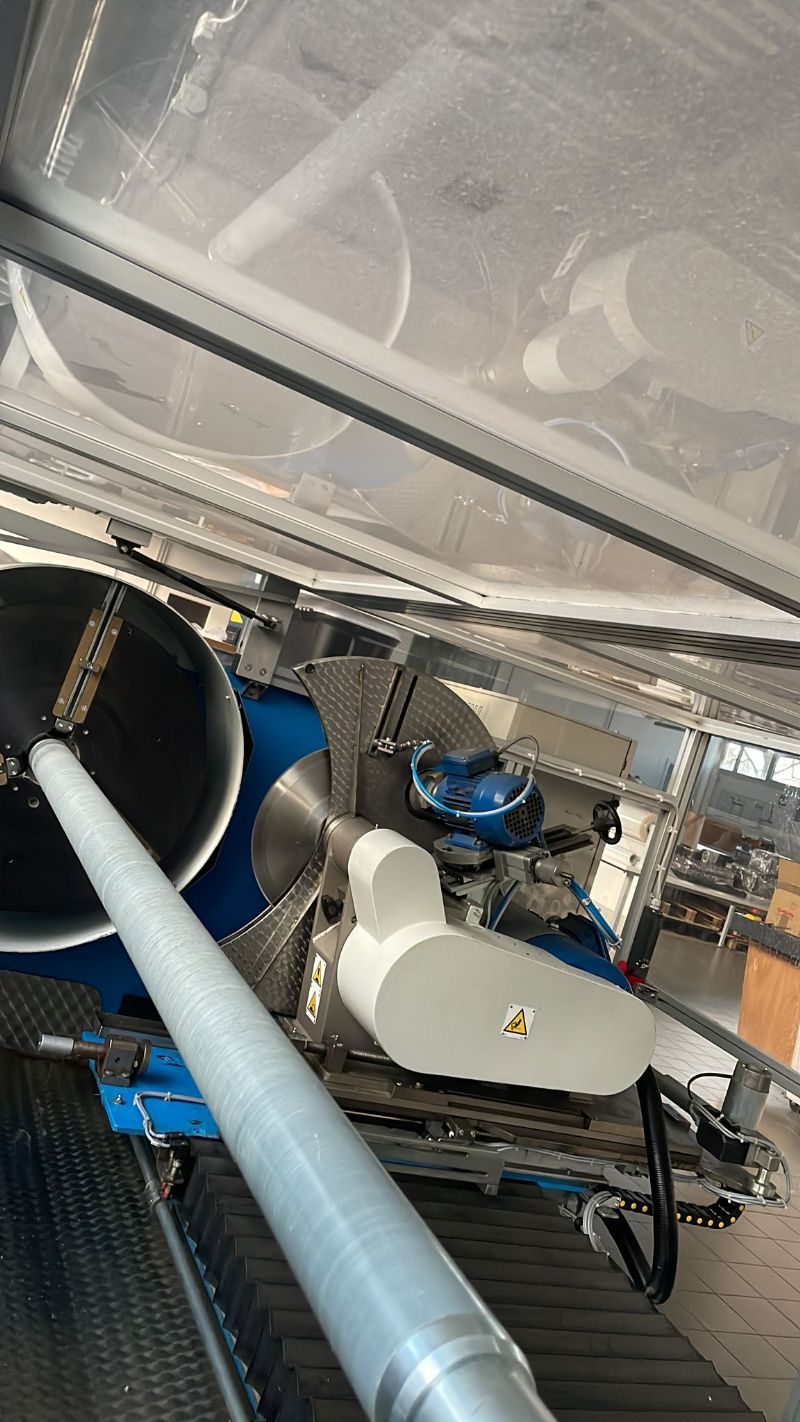

Cutting system: single rotating blade on one mandrel. - Driven blade unit.
Total safety protection.
Flip safety guard to cover the blade when main front door is opened.
Pneumatic chuck with Ø 640mm plateau and 3 jaws to grip the core from outside.

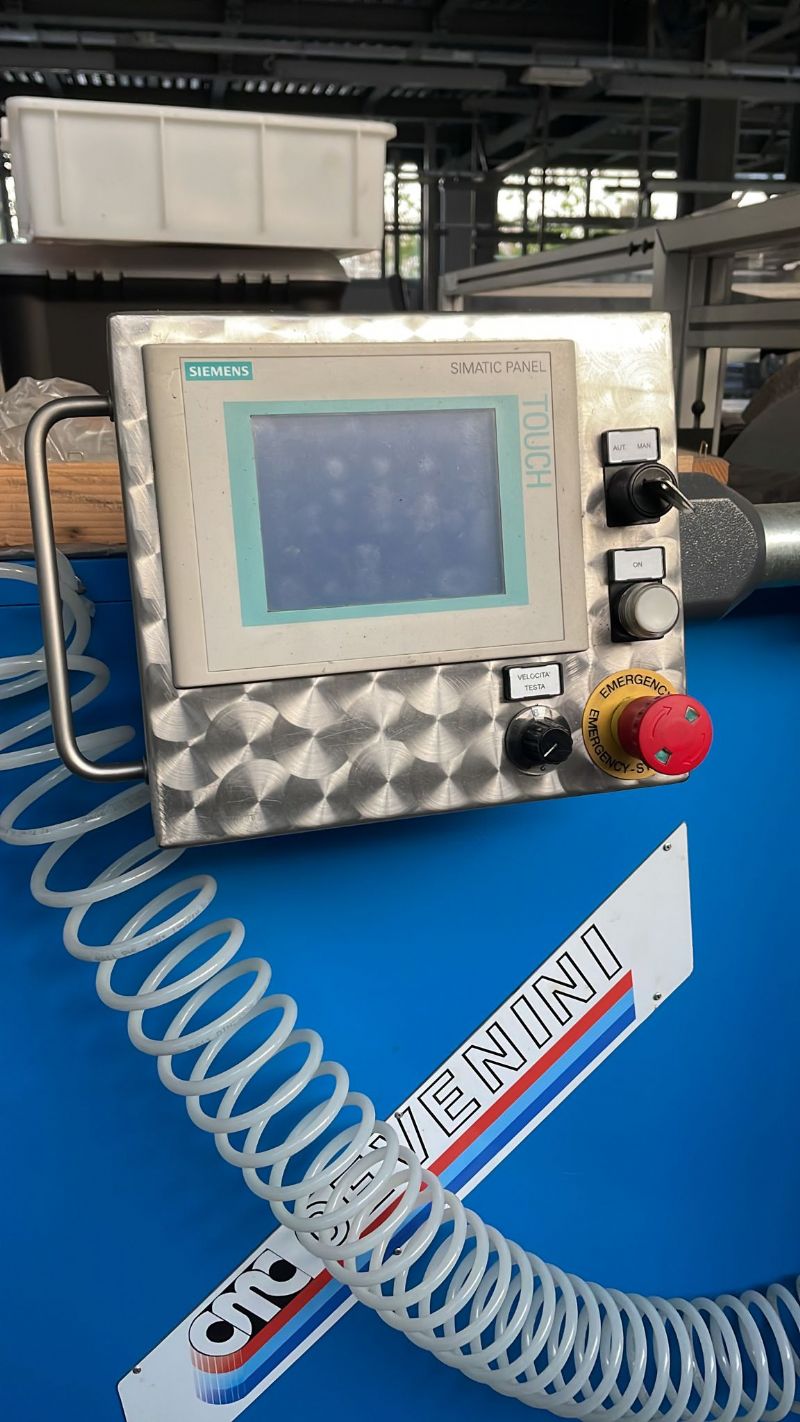

Machine controlled by a “PLC SIEMENS” and interface operator “Blue Mode” with touch screen technology for all the workingfunctions and
display for the cutting widths pre-selection, production counter, log & blade rotation speed.
